Sequence summary

Video preview

Sequence name: arm
Number of frames: 30
Number of moving groups: 2
Number of tracked points: 77 of which

  • Group 1: 45 points
  • Group 2: 32 points
Description:
An arm moving (two articulated objects).

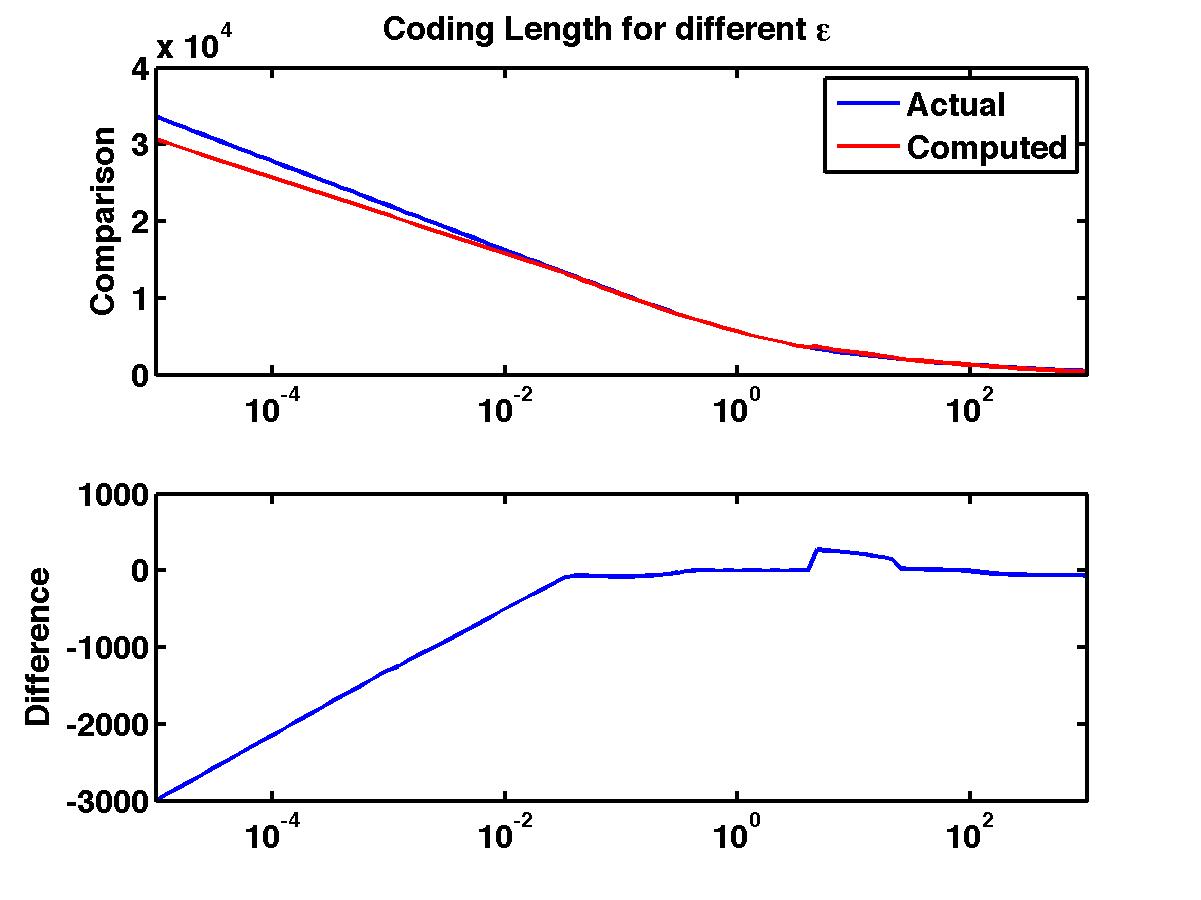

Plotted Results



Green indicates a trial with the lowest misclassification rate.

arm
epsilon # of motions error (%) coding length penalty
0.00001 1 41.56 30638.43 10175.36
0.00001 1 41.56 30242.99 10107.32
0.00001 1 41.56 29847.55 10039.29
0.00002 1 41.56 29452.11 9971.26
0.00002 1 41.56 29056.67 9903.23
0.00003 1 41.56 28661.22 9835.19
0.00003 1 41.56 28265.78 9767.16
0.00004 1 41.56 27870.34 9699.13
0.00004 1 41.56 27474.90 9631.09
0.00005 1 41.56 27079.45 9563.06
0.00006 1 41.56 26684.01 9495.03
0.00008 1 41.56 26288.57 9426.99
0.00009 1 41.56 25893.13 9358.96
0.00011 1 41.56 25497.68 9290.93
0.00013 1 41.56 25102.24 9222.89
0.00016 1 41.56 24706.80 9154.86
0.00019 1 41.56 24311.36 9086.83
0.00023 1 41.56 23915.92 9018.80
0.00028 1 41.56 23520.47 8950.76
0.00033 1 41.56 23125.03 8882.73
0.00040 1 41.56 22729.59 8814.70
0.00048 1 41.56 22334.15 8746.66
0.00058 1 41.56 21938.70 8678.63
0.00069 1 41.56 21543.26 8610.60
0.00083 1 41.56 21147.82 8542.56
0.00100 1 41.56 20752.38 8474.53
0.00120 2 44.16 20334.72 8384.28
0.00145 2 44.16 19938.21 8315.18
0.00174 2 44.16 19541.71 8246.09
0.00209 2 44.16 19145.20 8176.99
0.00251 2 42.86 18737.92 8097.12
0.00302 2 42.86 18340.09 8026.70
0.00363 2 42.86 17942.26 7956.28
0.00437 2 42.86 17544.43 7885.86
0.00525 2 42.86 17146.60 7815.44
0.00631 2 42.86 16748.78 7745.03
0.00759 2 42.86 16350.96 7674.62
0.00912 2 42.86 15953.15 7604.21
0.01096 2 42.86 15555.34 7533.82
0.01318 2 42.86 15157.55 7463.44
0.01585 2 42.86 14759.78 7393.07
0.01905 2 42.86 14362.04 7322.74
0.02291 2 42.86 13964.34 7252.45
0.02754 2 45.45 13565.81 7181.33
0.03311 2 45.45 13164.12 7107.05
0.03981 3 5.19 12724.90 6995.24
0.04786 3 6.49 12268.34 6866.09
0.05754 3 6.49 11807.32 6732.47
0.06918 3 6.49 11349.41 6601.98
0.08318 3 6.49 10895.48 6475.46
0.10000 3 6.49 10446.52 6353.90
0.12023 3 6.49 10003.70 6238.50
0.14454 3 6.49 9568.39 6130.59
0.17378 3 6.49 9142.05 6031.67
0.20893 3 6.49 8726.17 5943.19
0.25119 3 6.49 8322.07 5866.50
0.30200 3 6.49 7930.82 5802.66
0.36308 3 5.19 7552.95 5752.20
0.43652 2 0.00 7175.55 5702.21
0.52481 2 0.00 6801.49 5655.56
0.63096 2 0.00 6440.47 5621.95
0.75858 2 0.00 6093.17 5602.06
0.91201 2 0.00 5760.11 5596.41
1.09648 2 0.00 5441.59 5605.29
1.31826 2 0.00 5137.72 5628.84
1.58489 2 0.00 4848.49 5667.02
1.90546 2 0.00 4573.80 5719.73
2.29087 2 0.00 4313.50 5786.84
2.75423 2 0.00 4067.41 5868.16
3.31131 2 0.00 3835.31 5963.47
3.98107 2 0.00 3616.90 6072.46
4.78630 1 41.56 3686.32 6469.30
5.75440 1 41.56 3482.60 6592.98
6.91831 1 41.56 3291.47 6729.26
8.31764 1 41.56 3111.18 6876.38
10.00000 1 41.56 2940.03 7032.65
12.02264 1 41.56 2776.54 7196.57
14.45440 1 41.56 2619.53 7366.96
17.37801 1 41.56 2468.17 7543.01
20.89296 1 41.56 2322.01 7724.27
25.11886 2 2.60 2068.62 7798.29
30.19952 2 2.60 1950.73 8007.80
36.30781 2 2.60 1838.82 8223.30
43.65158 2 2.60 1732.44 8444.32
52.48075 2 2.60 1631.02 8670.31
63.09573 2 2.60 1534.01 8900.72
75.85776 2 2.60 1440.90 9135.01
91.20108 1 41.56 1343.98 9365.51
109.64782 1 41.56 1245.57 9594.50
131.82567 1 41.56 1152.06 9828.41
158.48932 1 41.56 1063.44 10067.19
190.54607 1 41.56 979.72 10310.88
229.08677 1 41.56 900.89 10559.46
275.42287 1 41.56 826.85 10812.83
331.13112 1 41.56 757.40 11070.79
398.10717 1 41.56 692.24 11333.04
478.63009 1 41.56 630.97 11599.18
575.43994 1 41.56 573.17 11868.78
691.83097 1 41.56 518.42 12141.45
831.76377 1 41.56 466.41 12416.85
1000.00000 1 41.56 416.95 12694.79
