Sequence summary

Video preview

Sequence name: 1R2TCRT_g12
Number of frames: 41
Number of moving groups: 2
Number of tracked points: 199 of which

  • Group 1: 73 points
  • Group 2: 126 points
Description:
Sequence derived from 1R2TCRT but with groups 1,2 only.

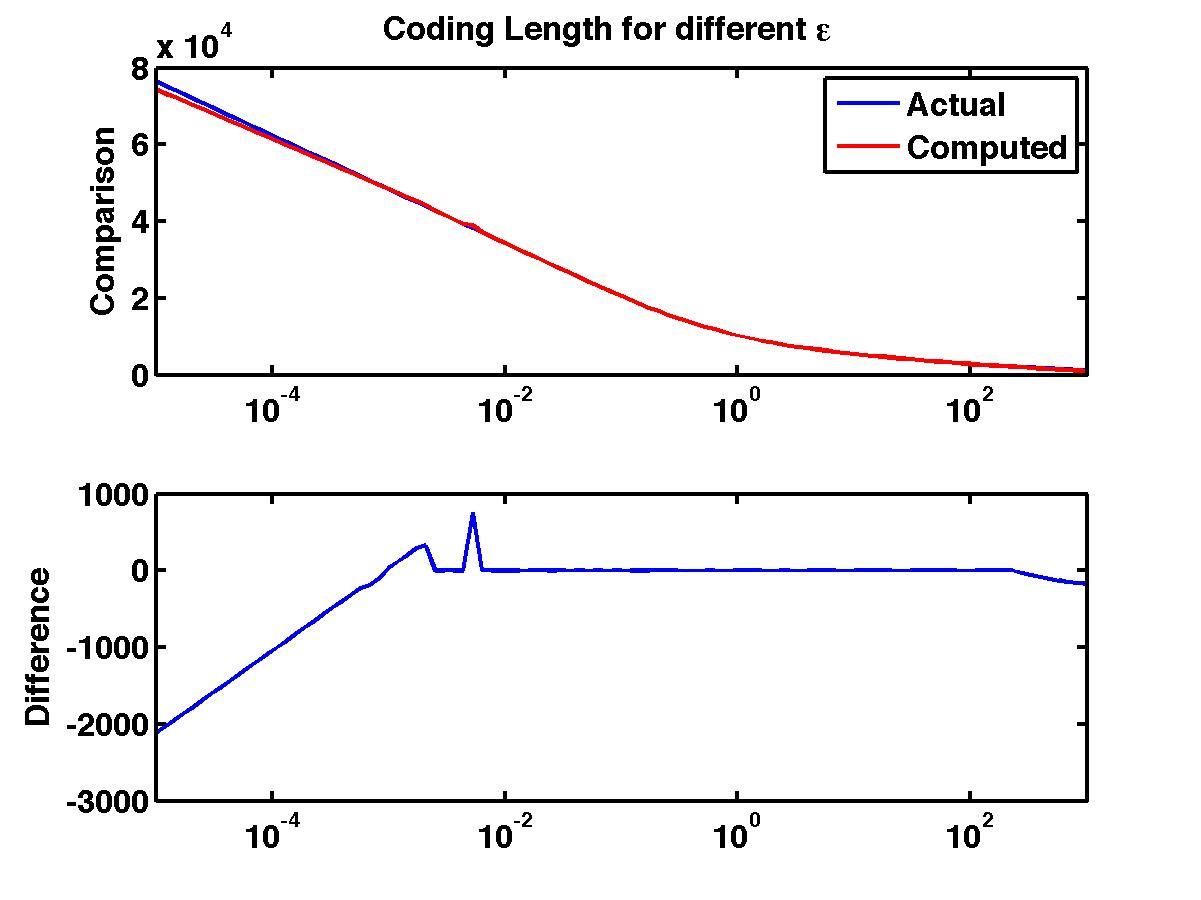

Plotted Results



Green indicates a trial with the lowest misclassification rate.

1R2TCRT_g12
epsilon # of motions error (%) coding length penalty
0.00001 1 36.68 74361.15 14865.42
0.00001 1 36.68 73323.12 14779.32
0.00001 1 36.68 72285.08 14693.21
0.00002 1 36.68 71247.04 14607.11
0.00002 1 36.68 70209.01 14521.00
0.00003 1 36.68 69170.97 14434.90
0.00003 1 36.68 68132.94 14348.79
0.00004 1 36.68 67094.90 14262.69
0.00004 1 36.68 66056.86 14176.58
0.00005 1 36.68 65018.83 14090.48
0.00006 1 36.68 63980.79 14004.38
0.00008 1 36.68 62942.76 13918.27
0.00009 1 36.68 61904.72 13832.17
0.00011 1 36.68 60866.68 13746.06
0.00013 1 36.68 59828.65 13659.96
0.00016 1 36.68 58790.61 13573.85
0.00019 1 36.68 57752.57 13487.75
0.00023 1 36.68 56714.54 13401.65
0.00028 1 36.68 55676.50 13315.54
0.00033 1 36.68 54638.47 13229.44
0.00040 1 36.68 53600.43 13143.33
0.00048 1 36.68 52562.40 13057.23
0.00058 1 36.68 51524.36 12971.13
0.00069 2 36.18 50440.21 12838.91
0.00083 2 36.18 49401.91 12752.54
0.00100 1 36.68 48410.26 12712.82
0.00120 1 36.68 47372.22 12626.72
0.00145 1 36.68 46334.19 12540.62
0.00174 1 36.68 45296.16 12454.52
0.00209 2 36.18 44210.43 12320.72
0.00251 2 0.00 42758.18 11820.40
0.00302 2 0.00 41634.11 11648.26
0.00363 2 0.00 40510.08 11476.16
0.00437 2 0.00 39386.08 11304.10
0.00525 2 36.18 39019.11 11889.06
0.00631 2 0.00 37138.33 10960.21
0.00759 2 0.00 36014.64 10788.45
0.00912 2 0.00 34891.14 10616.89
0.01096 2 0.00 33767.94 10445.61
0.01318 2 0.00 32645.15 10274.75
0.01585 2 0.00 31522.96 10104.49
0.01905 2 0.00 30401.63 9935.09
0.02291 2 0.00 29281.53 9766.93
0.02754 2 0.00 28163.20 9600.53
0.03311 2 0.00 27047.40 9436.66
0.03981 2 0.00 25935.17 9276.36
0.04786 2 0.00 24827.97 9121.10
0.05754 2 0.00 23727.77 8972.83
0.06918 2 0.00 22637.17 8834.16
0.08318 2 0.00 21559.49 8708.42
0.10000 2 0.00 20498.79 8599.65
0.12023 2 0.00 19459.77 8512.55
0.14454 2 0.00 18447.52 8452.24
0.17378 2 0.00 17467.16 8423.80
0.20893 2 0.00 16523.36 8431.94
0.25119 2 0.00 15619.96 8480.48
0.30200 2 0.00 14759.73 8572.17
0.36308 2 0.00 13944.26 8708.63
0.43652 2 0.00 13174.10 8890.41
0.52481 2 0.00 12448.96 9117.19
0.63096 2 0.00 11767.83 9388.00
0.75858 2 0.00 11129.20 9701.30
0.91201 2 0.00 10531.16 10055.19
1.09648 2 0.00 9971.53 10447.49
1.31826 2 0.00 9448.00 10875.90
1.58489 2 0.00 8958.25 11338.08
1.90546 2 0.00 8499.99 11831.75
2.29087 2 0.00 8071.00 12354.69
2.75423 2 0.00 7669.12 12904.74
3.31131 2 0.00 7292.24 13479.80
3.98107 2 0.00 6938.31 14077.80
4.78630 2 0.00 6605.30 14696.71
5.75440 2 0.00 6291.20 15334.55
6.91831 2 0.00 5994.09 15989.37
8.31764 2 0.00 5712.14 16659.35
10.00000 2 0.00 5443.69 17342.83
12.02264 2 0.00 5187.26 18038.33
14.45440 2 0.00 4941.52 18744.53
17.37801 2 0.00 4705.32 19460.26
20.89296 2 0.00 4477.63 20184.51
25.11886 2 0.00 4257.62 20916.42
30.19952 2 0.00 4044.63 21655.37
36.30781 2 0.00 3838.23 22400.89
43.65158 2 0.00 3638.16 23152.76
52.48075 2 0.00 3444.36 23910.89
63.09573 2 0.00 3256.88 24675.34
75.85776 2 0.00 3075.89 25446.29
91.20108 2 0.00 2901.64 26223.96
109.64782 2 0.00 2734.32 27008.57
131.82567 2 0.00 2574.01 27800.20
158.48932 2 0.00 2420.57 28598.69
190.54607 2 0.00 2273.61 29403.66
229.08677 2 0.00 2132.57 30214.56
275.42287 1 36.68 1967.30 31001.22
331.13112 1 36.68 1806.50 31792.34
398.10717 1 36.68 1652.42 32590.20
478.63009 1 36.68 1505.76 33395.47
575.43994 1 36.68 1367.20 34208.84
691.83097 1 36.68 1237.28 35030.86
831.76377 1 36.68 1116.33 35861.84
1000.00000 1 36.68 1004.45 36701.89
