Sequence summary

Video preview

Sequence name: truck1
Number of frames: 30
Number of moving groups: 2
Number of tracked points: 188 of which

  • Group 1: 105 points
  • Group 2: 83 points
Description:
A truck at a crossing, taken from the front-side.

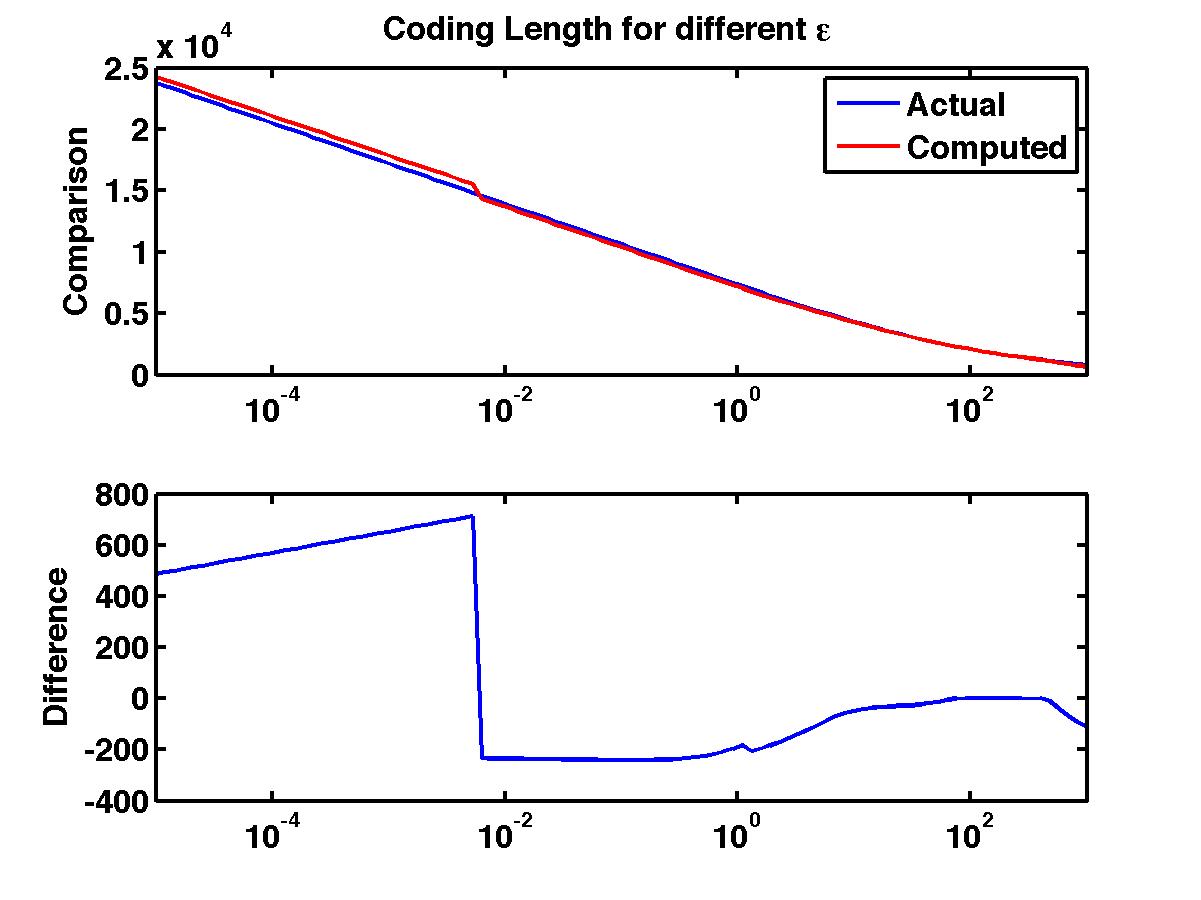

Plotted Results



Green indicates a trial with the lowest misclassification rate.

truck1
epsilon # of motions error (%) coding length penalty
0.00001 1 44.15 24253.08 8640.02
0.00001 1 44.15 23996.62 8633.37
0.00001 1 44.15 23740.17 8626.73
0.00002 1 44.15 23483.72 8620.08
0.00002 1 44.15 23227.27 8613.44
0.00003 1 44.15 22970.81 8606.80
0.00003 1 44.15 22714.36 8600.15
0.00004 1 44.15 22457.91 8593.51
0.00004 1 44.15 22201.45 8586.86
0.00005 1 44.15 21945.00 8580.22
0.00006 1 44.15 21688.55 8573.58
0.00008 1 44.15 21432.10 8566.93
0.00009 1 44.15 21175.64 8560.29
0.00011 1 44.15 20919.19 8553.64
0.00013 1 44.15 20662.74 8547.00
0.00016 1 44.15 20406.28 8540.36
0.00019 1 44.15 20149.83 8533.71
0.00023 1 44.15 19893.38 8527.07
0.00028 1 44.15 19636.93 8520.43
0.00033 1 44.15 19380.47 8513.78
0.00040 1 44.15 19124.02 8507.14
0.00048 1 44.15 18867.57 8500.49
0.00058 1 44.15 18611.11 8493.85
0.00069 1 44.15 18354.66 8487.21
0.00083 1 44.15 18098.21 8480.56
0.00100 1 44.15 17841.76 8473.92
0.00120 1 44.15 17585.30 8467.27
0.00145 1 44.15 17328.85 8460.63
0.00174 1 44.15 17072.40 8453.99
0.00209 1 44.15 16815.94 8447.34
0.00251 1 44.15 16559.49 8440.70
0.00302 1 44.15 16303.04 8434.06
0.00363 1 44.15 16046.59 8427.41
0.00437 1 44.15 15790.13 8420.77
0.00525 1 44.15 15533.68 8414.12
0.00631 4 1.06 14323.93 7454.18
0.00759 4 1.06 14060.30 7440.36
0.00912 4 1.06 13796.68 7426.55
0.01096 4 1.06 13533.05 7412.73
0.01318 4 1.06 13269.43 7398.92
0.01585 4 1.06 13005.81 7385.11
0.01905 4 1.06 12742.19 7371.30
0.02291 4 1.06 12478.58 7357.50
0.02754 4 1.06 12214.98 7343.70
0.03311 4 1.06 11951.39 7329.92
0.03981 4 1.06 11687.81 7316.16
0.04786 4 1.06 11424.26 7302.42
0.05754 4 1.06 11160.75 7288.71
0.06918 4 1.06 10897.28 7275.05
0.08318 4 1.06 10633.88 7261.46
0.10000 4 1.06 10370.59 7247.98
0.12023 4 1.06 10107.44 7234.64
0.14454 4 1.06 9844.50 7221.51
0.17378 4 1.06 9581.86 7208.67
0.20893 4 1.06 9319.63 7196.25
0.25119 4 1.06 9057.98 7184.42
0.30200 4 1.06 8797.13 7173.37
0.36308 4 1.06 8537.35 7163.40
0.43652 4 1.06 8278.97 7154.83
0.52481 4 1.06 8022.36 7148.03
0.63096 4 1.06 7767.91 7143.39
0.75858 4 1.06 7515.98 7141.27
0.91201 4 1.06 7266.87 7141.97
1.09648 4 1.06 7020.79 7145.69
1.31826 5 21.28 6738.76 7113.47
1.58489 5 21.28 6493.64 7118.16
1.90546 5 21.28 6252.32 7126.65
2.29087 5 21.28 6015.01 7139.15
2.75423 5 21.28 5781.90 7155.85
3.31131 5 21.28 5553.17 7176.93
3.98107 5 21.28 5328.94 7202.50
4.78630 5 21.28 5109.26 7232.63
5.75440 5 21.28 4894.12 7267.31
6.91831 5 21.28 4683.47 7306.47
8.31764 4 20.74 4473.07 7345.87
10.00000 4 20.74 4261.88 7384.50
12.02264 4 20.74 4056.82 7429.24
14.45440 3 20.21 3855.19 7477.42
17.37801 3 20.21 3655.90 7527.93
20.89296 3 20.21 3463.16 7585.01
25.11886 3 20.21 3277.23 7648.89
30.19952 3 22.34 3095.33 7716.80
36.30781 3 21.81 2923.44 7794.71
43.65158 3 21.81 2758.61 7879.69
52.48075 3 21.81 2601.63 7972.52
63.09573 3 21.81 2452.40 8073.11
75.85776 2 0.00 2308.68 8179.20
91.20108 2 0.00 2167.22 8287.54
109.64782 2 0.00 2032.74 8402.87
131.82567 2 0.00 1904.70 8524.64
158.48932 2 0.00 1782.38 8652.13
190.54607 2 0.00 1664.98 8784.54
229.08677 2 0.00 1551.77 8921.14
275.42287 2 0.00 1442.16 9061.34
331.13112 2 0.00 1335.78 9204.77
398.10717 2 0.00 1232.52 9351.32
478.63009 1 44.15 1121.60 9490.20
575.43994 1 44.15 994.72 9613.13
691.83097 1 44.15 875.43 9743.65
831.76377 1 44.15 764.40 9882.42
1000.00000 1 44.15 662.06 10029.90
