Sequence summary

Video preview

Sequence name: articulated_g12
Number of frames: 31
Number of moving groups: 2
Number of tracked points: 82 of which

  • Group 1: 37 points
  • Group 2: 45 points
Description:
Sequence derived from articulated but with groups 1,2 only.

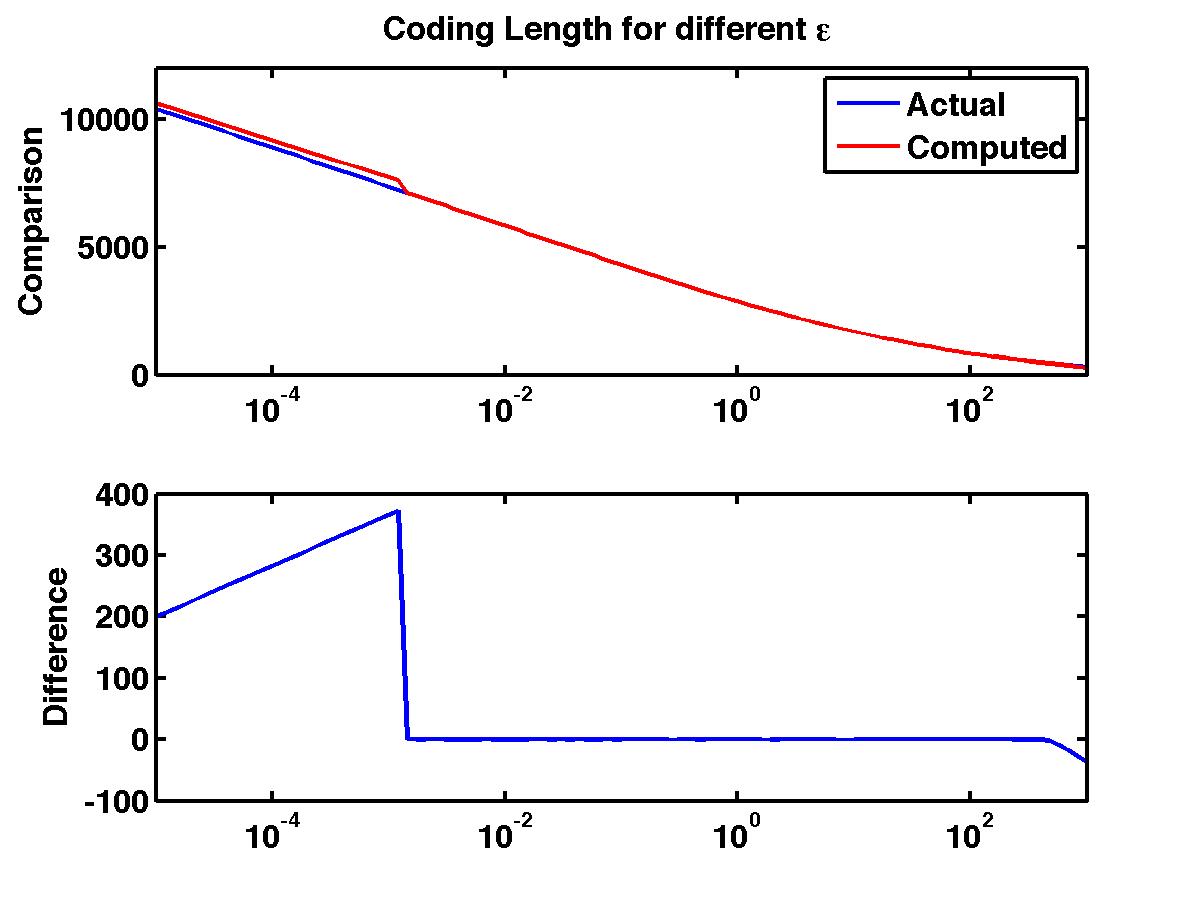

Plotted Results



Green indicates a trial with the lowest misclassification rate.

articulated_g12
epsilon # of motions error (%) coding length penalty
0.00001 1 45.12 10600.28 3790.32
0.00001 1 45.12 10484.67 3783.68
0.00001 1 45.12 10369.07 3777.04
0.00002 1 45.12 10253.47 3770.39
0.00002 1 45.12 10137.86 3763.75
0.00003 1 45.12 10022.26 3757.10
0.00003 1 45.12 9906.66 3750.46
0.00004 1 45.12 9791.06 3743.82
0.00004 1 45.12 9675.45 3737.17
0.00005 1 45.12 9559.85 3730.53
0.00006 1 45.12 9444.25 3723.89
0.00008 1 45.12 9328.64 3717.24
0.00009 1 45.12 9213.04 3710.60
0.00011 1 45.12 9097.44 3703.95
0.00013 1 45.12 8981.83 3697.31
0.00016 1 45.12 8866.23 3690.67
0.00019 1 45.12 8750.63 3684.02
0.00023 1 45.12 8635.02 3677.38
0.00028 1 45.12 8519.42 3670.73
0.00033 1 45.12 8403.82 3664.09
0.00040 1 45.12 8288.21 3657.45
0.00048 1 45.12 8172.61 3650.80
0.00058 1 45.12 8057.01 3644.16
0.00069 1 45.12 7941.41 3637.52
0.00083 1 45.12 7825.80 3630.87
0.00100 1 45.12 7710.20 3624.23
0.00120 1 45.12 7594.60 3617.58
0.00145 2 0.00 7099.81 3231.76
0.00174 2 0.00 6977.57 3218.47
0.00209 2 0.00 6855.32 3205.18
0.00251 2 0.00 6733.07 3191.90
0.00302 2 0.00 6610.83 3178.61
0.00363 2 0.00 6488.58 3165.32
0.00437 2 0.00 6366.33 3152.04
0.00525 2 0.00 6244.09 3138.75
0.00631 2 0.00 6121.85 3125.47
0.00759 2 0.00 5999.60 3112.18
0.00912 2 0.00 5877.36 3098.90
0.01096 2 0.00 5755.12 3085.62
0.01318 2 0.00 5632.89 3072.35
0.01585 2 0.00 5510.66 3059.08
0.01905 2 0.00 5388.44 3045.82
0.02291 2 0.00 5266.23 3032.57
0.02754 2 0.00 5144.04 3019.33
0.03311 2 0.00 5021.87 3006.12
0.03981 2 0.00 4899.74 2992.95
0.04786 2 0.00 4777.65 2979.83
0.05754 2 0.00 4655.64 2966.77
0.06918 2 0.00 4533.73 2953.82
0.08318 2 0.00 4411.97 2941.02
0.10000 2 0.00 4290.42 2928.43
0.12023 2 0.00 4169.15 2916.12
0.14454 2 0.00 4048.29 2904.22
0.17378 2 0.00 3927.98 2892.87
0.20893 2 0.00 3808.40 2882.25
0.25119 2 0.00 3689.77 2872.58
0.30200 2 0.00 3572.33 2864.09
0.36308 2 0.00 3456.31 2857.03
0.43652 2 0.00 3341.93 2851.61
0.52481 2 0.00 3229.36 2848.00
0.63096 2 0.00 3118.70 2846.30
0.75858 2 0.00 3010.02 2846.58
0.91201 2 0.00 2903.31 2848.83
1.09648 2 0.00 2798.54 2853.02
1.31826 2 0.00 2695.65 2859.09
1.58489 2 0.00 2594.56 2866.96
1.90546 2 0.00 2495.22 2876.58
2.29087 2 0.00 2397.60 2887.91
2.75423 2 0.00 2301.74 2901.02
3.31131 2 0.00 2207.76 2915.99
3.98107 2 0.00 2115.79 2932.98
4.78630 2 0.00 2026.00 2952.16
5.75440 2 0.00 1938.53 2973.65
6.91831 2 0.00 1853.46 2997.53
8.31764 2 0.00 1770.77 3023.80
10.00000 2 0.00 1690.40 3052.39
12.02264 2 0.00 1612.24 3083.19
14.45440 2 0.00 1536.14 3116.04
17.37801 2 0.00 1461.98 3150.85
20.89296 2 0.00 1389.70 3187.53
25.11886 2 0.00 1319.25 3226.03
30.19952 2 0.00 1250.61 3266.35
36.30781 2 0.00 1183.79 3308.49
43.65158 2 0.00 1118.79 3352.45
52.48075 2 0.00 1055.60 3398.22
63.09573 2 0.00 994.24 3445.82
75.85776 2 0.00 934.73 3495.27
91.20108 2 0.00 877.09 3546.59
109.64782 2 0.00 821.34 3599.80
131.82567 2 0.00 767.48 3654.90
158.48932 2 0.00 715.48 3711.86
190.54607 2 0.00 665.34 3770.68
229.08677 2 0.00 617.07 3831.36
275.42287 2 1.22 570.73 3893.98
331.13112 2 1.22 526.36 3958.58
398.10717 2 1.22 484.24 4025.42
478.63009 1 45.12 442.97 4093.10
575.43994 1 45.12 398.05 4157.14
691.83097 1 45.12 354.58 4222.63
831.76377 1 45.12 312.76 4289.77
1000.00000 1 45.12 272.88 4358.85
