Sequence summary

Video preview

Sequence name: 1R2TCR_g23
Number of frames: 26
Number of moving groups: 2
Number of tracked points: 482 of which

  • Group 1: 145 points
  • Group 2: 337 points
Description:
Sequence derived from 1R2TCR but with groups 2,3 only.

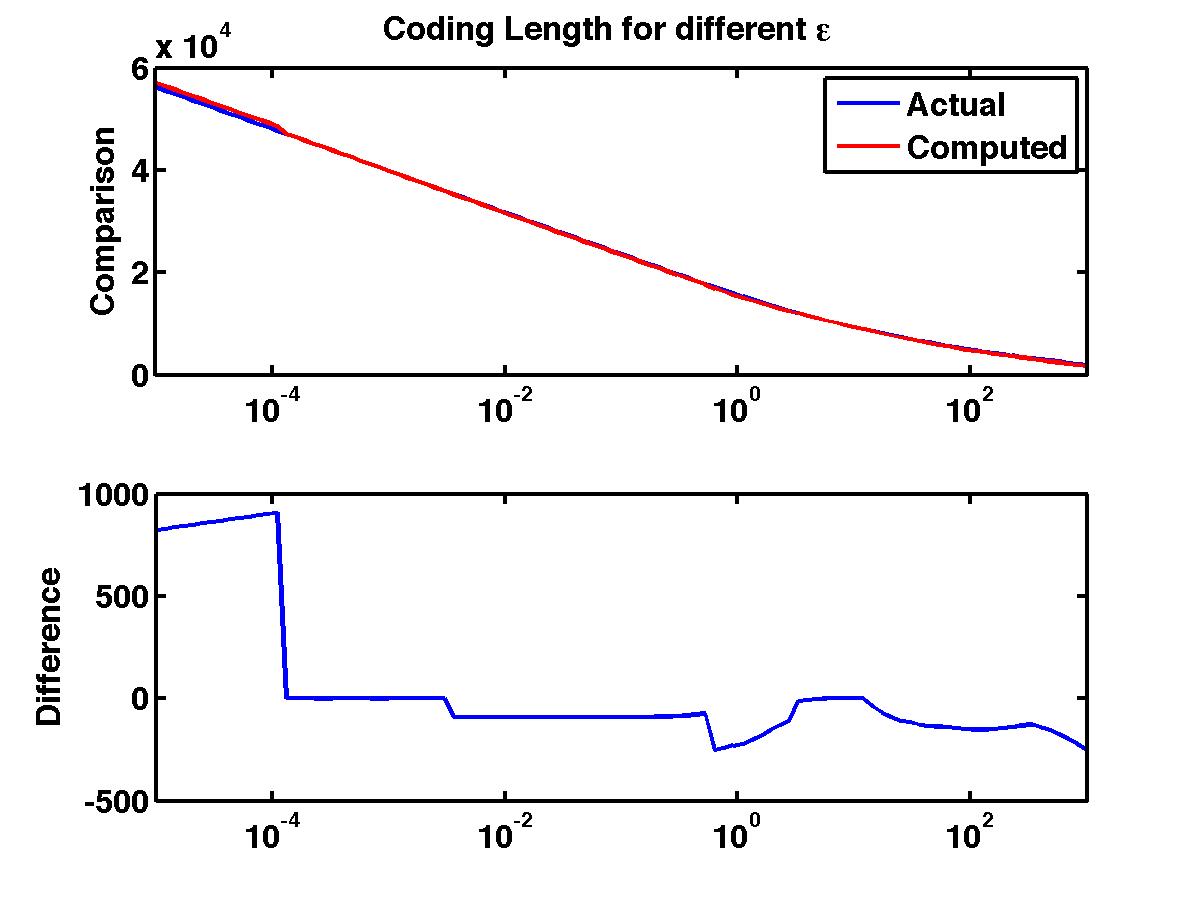

Plotted Results



Green indicates a trial with the lowest misclassification rate.

1R2TCR_g23
epsilon # of motions error (%) coding length penalty
0.00001 1 30.08 57050.34 17021.11
0.00001 1 30.08 56403.23 17014.47
0.00001 1 30.08 55756.12 17007.82
0.00002 1 30.08 55109.01 17001.18
0.00002 1 30.08 54461.90 16994.54
0.00003 1 30.08 53814.79 16987.89
0.00003 1 30.08 53167.67 16981.25
0.00004 1 30.08 52520.56 16974.60
0.00004 1 30.08 51873.45 16967.96
0.00005 1 30.08 51226.34 16961.32
0.00006 1 30.08 50579.23 16954.67
0.00008 1 30.08 49932.12 16948.03
0.00009 1 30.08 49285.01 16941.38
0.00011 1 30.08 48637.89 16934.74
0.00013 2 0.00 47074.59 16011.91
0.00016 2 0.00 46420.84 15998.62
0.00019 2 0.00 45767.08 15985.33
0.00023 2 0.00 45113.33 15972.05
0.00028 2 0.00 44459.57 15958.76
0.00033 2 0.00 43805.82 15945.47
0.00040 2 0.00 43152.06 15932.18
0.00048 2 0.00 42498.31 15918.89
0.00058 2 0.00 41844.55 15905.61
0.00069 2 0.00 41190.80 15892.32
0.00083 2 0.00 40537.04 15879.03
0.00100 2 0.00 39883.28 15865.74
0.00120 2 0.00 39229.53 15852.46
0.00145 2 0.00 38575.77 15839.17
0.00174 2 0.00 37922.02 15825.88
0.00209 2 0.00 37268.26 15812.59
0.00251 2 0.00 36614.51 15799.31
0.00302 2 0.00 35960.75 15786.02
0.00363 2 4.15 35215.13 15680.86
0.00437 2 4.15 34561.38 15667.58
0.00525 2 4.15 33907.62 15654.29
0.00631 2 4.15 33253.87 15641.01
0.00759 2 4.15 32600.12 15627.73
0.00912 2 4.15 31946.38 15614.45
0.01096 2 4.15 31292.63 15601.17
0.01318 2 4.15 30638.90 15587.90
0.01585 2 4.15 29985.17 15574.64
0.01905 2 4.15 29331.45 15561.39
0.02291 2 4.15 28677.75 15548.16
0.02754 2 4.15 28024.08 15534.96
0.03311 2 4.15 27370.44 15521.78
0.03981 2 4.15 26716.85 15508.67
0.04786 2 4.15 26063.34 15495.62
0.05754 2 4.15 25409.94 15482.69
0.06918 2 4.15 24756.69 15469.91
0.08318 2 4.15 24103.67 15457.35
0.10000 2 4.15 23450.97 15445.12
0.12023 2 4.15 22798.74 15433.36
0.14454 2 4.15 22147.17 15422.26
0.17378 2 4.15 21496.55 15412.11
0.20893 2 4.15 20847.28 15403.31
0.25119 2 4.15 20199.91 15396.40
0.30200 2 4.15 19555.18 15392.13
0.36308 2 4.15 18914.06 15391.49
0.43652 2 4.15 18277.82 15395.72
0.52481 2 4.15 17647.98 15406.34
0.63096 3 6.22 16842.02 15240.85
0.75858 3 6.22 16230.33 15269.63
0.91201 3 6.22 15632.11 15311.88
1.09648 3 6.43 15040.76 15360.99
1.31826 3 6.43 14474.46 15435.16
1.58489 3 6.43 13925.31 15526.48
1.90546 3 6.22 13400.71 15642.35
2.29087 3 6.22 12886.37 15768.47
2.75423 3 6.22 12389.60 15912.17
3.31131 3 4.15 11986.21 16149.25
3.98107 3 3.94 11510.80 16314.31
4.78630 3 3.94 11050.90 16494.88
5.75440 2 0.00 10605.66 16690.11
6.91831 2 0.00 10171.74 16896.65
8.31764 2 0.00 9750.25 17115.63
10.00000 2 0.00 9339.48 17345.32
12.02264 2 0.00 8938.07 17584.38
14.45440 3 10.79 8505.94 17792.72
17.37801 3 13.90 8091.49 18018.74
20.89296 3 14.11 7694.71 18262.43
25.11886 3 14.52 7307.47 18515.65
30.19952 3 14.32 6942.06 18790.71
36.30781 3 14.32 6581.84 19070.96
43.65158 3 14.32 6236.66 19366.25
52.48075 3 14.52 5906.29 19676.35
63.09573 3 14.32 5588.50 19999.02
75.85776 3 14.32 5276.79 20327.78
91.20108 3 14.32 4977.47 20668.93
109.64782 3 14.32 4688.97 21020.89
131.82567 3 14.32 4409.87 21382.27
158.48932 3 14.32 4139.12 21751.98
190.54607 3 14.32 3877.54 22130.87
229.08677 2 14.32 3623.78 22517.58
275.42287 2 14.11 3374.62 22908.89
331.13112 1 30.08 3130.82 23305.56
398.10717 1 30.08 2875.40 23690.60
478.63009 1 30.08 2623.71 24079.38
575.43994 1 30.08 2376.50 24472.63
691.83097 1 30.08 2134.93 24871.53
831.76377 1 30.08 1900.52 25277.59
1000.00000 1 30.08 1675.11 25692.65
