Sequence summary

Video preview

Sequence name: 1R2TCR_g13
Number of frames: 26
Number of moving groups: 2
Number of tracked points: 411 of which

  • Group 1: 74 points
  • Group 2: 337 points
Description:
Sequence derived from 1R2TCR but with groups 1,3 only.

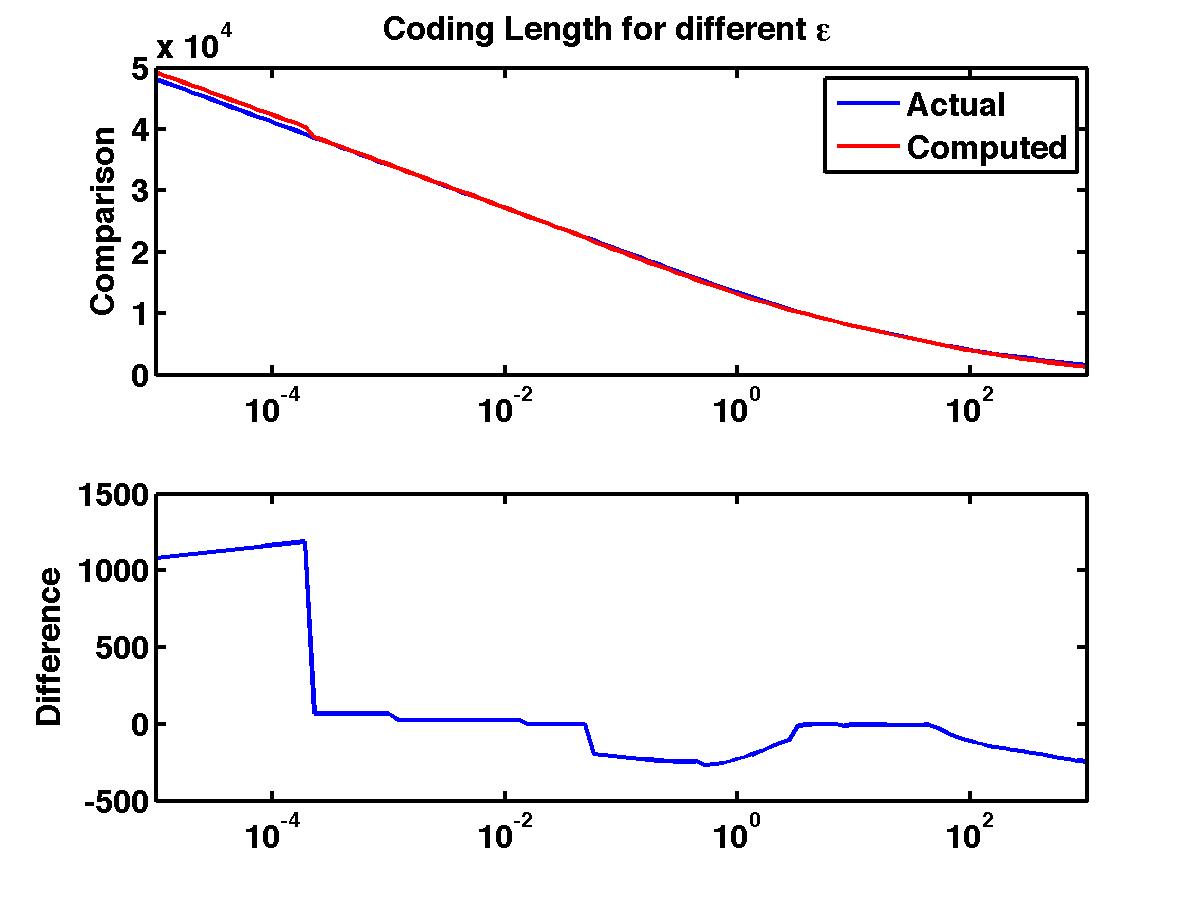

Plotted Results



Green indicates a trial with the lowest misclassification rate.

1R2TCR_g13
epsilon # of motions error (%) coding length penalty
0.00001 1 18.00 49249.90 15117.09
0.00001 1 18.00 48697.13 15110.45
0.00001 1 18.00 48144.36 15103.80
0.00002 1 18.00 47591.59 15097.16
0.00002 1 18.00 47038.83 15090.51
0.00003 1 18.00 46486.06 15083.87
0.00003 1 18.00 45933.29 15077.23
0.00004 1 18.00 45380.52 15070.58
0.00004 1 18.00 44827.75 15063.94
0.00005 1 18.00 44274.98 15057.29
0.00006 1 18.00 43722.21 15050.65
0.00008 1 18.00 43169.44 15044.01
0.00009 1 18.00 42616.67 15037.36
0.00011 1 18.00 42063.91 15030.72
0.00013 1 18.00 41511.14 15024.08
0.00016 1 18.00 40958.37 15017.43
0.00019 1 18.00 40405.60 15010.79
0.00023 2 0.49 38725.50 13876.81
0.00028 2 0.49 38166.09 13863.53
0.00033 2 0.49 37606.67 13850.24
0.00040 2 0.49 37047.26 13836.95
0.00048 2 0.49 36487.85 13823.66
0.00058 2 0.49 35928.44 13810.38
0.00069 2 0.49 35369.02 13797.09
0.00083 2 0.49 34809.61 13783.80
0.00100 2 0.49 34250.20 13770.51
0.00120 2 0.24 33648.77 13715.21
0.00145 2 0.24 33089.36 13701.92
0.00174 2 0.24 32529.94 13688.63
0.00209 2 0.24 31970.53 13675.34
0.00251 2 0.24 31411.12 13662.06
0.00302 2 0.24 30851.71 13648.77
0.00363 2 0.24 30292.29 13635.48
0.00437 2 0.24 29732.88 13622.19
0.00525 2 0.24 29173.47 13608.91
0.00631 2 0.24 28614.06 13595.62
0.00759 2 0.24 28054.65 13582.34
0.00912 2 0.24 27495.24 13569.05
0.01096 2 0.24 26935.83 13555.77
0.01318 2 0.24 26376.43 13542.49
0.01585 2 0.00 25791.75 13503.94
0.01905 2 0.00 25232.36 13490.67
0.02291 2 0.00 24672.97 13477.41
0.02754 2 0.00 24113.59 13464.16
0.03311 2 0.00 23554.23 13450.92
0.03981 2 0.00 22994.90 13437.71
0.04786 2 0.00 22435.59 13424.53
0.05754 3 7.06 21680.43 13215.49
0.06918 3 7.06 21114.83 13196.02
0.08318 3 7.06 20549.43 13176.74
0.10000 3 7.06 19984.32 13157.76
0.12023 3 7.06 19419.63 13139.19
0.14454 3 7.06 18855.53 13121.22
0.17378 3 7.06 18292.29 13104.11
0.20893 3 7.06 17730.27 13088.21
0.25119 3 7.06 17169.98 13074.04
0.30200 3 7.06 16612.09 13062.28
0.36308 3 7.06 16057.53 13053.85
0.43652 3 7.06 15507.51 13049.94
0.52481 3 7.54 14934.93 13023.49
0.63096 3 7.54 14398.98 13033.67
0.75858 3 7.54 13872.74 13053.55
0.91201 3 7.54 13358.06 13085.00
1.09648 3 7.54 12856.55 13129.61
1.31826 3 7.54 12369.40 13188.59
1.58489 3 7.54 11897.36 13262.67
1.90546 3 7.30 11448.27 13359.71
2.29087 3 7.30 11006.68 13464.24
2.75423 3 7.30 10580.40 13584.08
3.31131 3 4.87 10245.48 13795.29
3.98107 3 4.62 9835.58 13931.52
4.78630 2 0.00 9438.11 14080.17
5.75440 2 0.00 9051.61 14239.79
6.91831 2 0.00 8677.25 14411.57
8.31764 3 6.33 8303.04 14583.48
10.00000 2 0.24 7955.06 14781.63
12.02264 2 0.24 7605.59 14978.28
14.45440 2 0.24 7262.63 15181.44
17.37801 2 0.49 6925.85 15390.79
20.89296 2 0.49 6593.24 15604.30
25.11886 2 0.49 6267.03 15824.22
30.19952 2 0.49 5947.88 16051.19
36.30781 2 0.49 5636.72 16286.16
43.65158 2 0.49 5334.66 16530.23
52.48075 1 18.00 5018.41 16760.10
63.09573 1 18.00 4703.68 16991.49
75.85776 1 18.00 4406.11 17240.05
91.20108 1 18.00 4124.35 17504.41
109.64782 1 18.00 3856.58 17782.77
131.82567 1 18.00 3600.71 18073.02
158.48932 1 18.00 3354.68 18373.11
190.54607 1 18.00 3116.64 18681.20
229.08677 1 18.00 2885.15 18995.83
275.42287 1 18.00 2659.21 19316.02
331.13112 1 18.00 2438.33 19641.26
398.10717 1 18.00 2222.48 19971.54
478.63009 1 18.00 2012.13 20307.31
575.43994 1 18.00 1808.13 20649.44
691.83097 1 18.00 1611.70 20999.14
831.76377 1 18.00 1424.27 21357.83
1000.00000 1 18.00 1247.24 21726.93
