N-S-Cross Sections

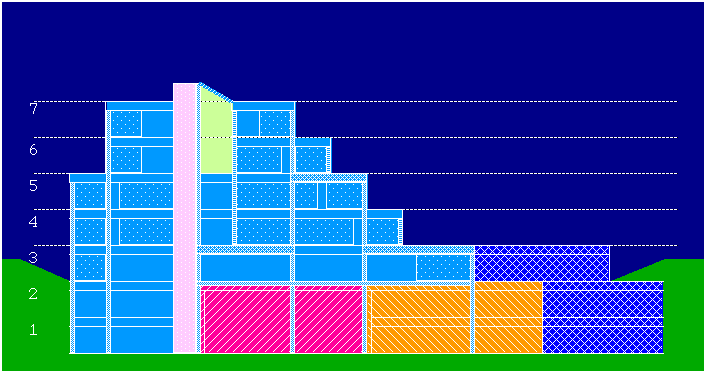

North-South-cross sections through Soda Hall, showing how the new building had to accommodate the pre-existing laboratories for Nuclear Engineering (pink) and for Mechanical Engineering (orange). that were already on the site. Yellow indicates the two-story atrium that ties the two faculty floors together. The dark blue, cross-hatched portion to the right (North) indicated space for a possible future extension of the building.

This plan shows the key grid lines from the construction drawings and some crucial dimensions in feet. Also shown in solid black are the key routes for the network backbone.
